1. Fitting Example (NLSF & MLE) in CPU - Mono-exponential FLI data processing

This example fits a simulated, mono-exponential fluorescence lifetime image (FLI) pixel by pixel with two estimators and compares them against the known ground truth:

• Non-linear least squares (NLSF): minimizes the sum of squared residuals between the IRF-convolved model and the decay.

• Maximum likelihood estimation (MLE): maximizes the Poisson log-likelihood of the photon counts. It models the counting statistics directly, so it remains accurate at low photon counts, where least squares becomes biased.

This example walks through:

• Simulating a whole FLI image with known lifetimes (as in the “Whole Image Simulation” example)

• Comparing NLSF and MLE on a single pixel

• Fitting the whole image with NLSF and with MLE

• Comparing the fitted lifetime maps and their distributions with the ground truth

• Inspecting the fit and residuals at individual pixels

Author - Vikas

import sys

import numpy as np

sys.path.insert(0, "ex_helper")  # local helper for synthetic image generation

from sim_general_image import LettersShape, ROIMaskGenerator

from pyfli.analysis.utils import plot_pixel_diagnostic, random_true_pixel
from pyfli.analyticalWorkflow import AnalyticalHelpers
from pyfli.data_cc import Normalization
from pyfli.data_text import MessageDisplay
from pyfli.data_vnp import ColorProcessor, DataViewer, Plotter
from pyfli.io import DataOperations
from pyfli.simulator import FLIModelImageGenerator
from pyfli.solver import (
    BaseFLIFitter,
    BinnedFLIFitter,
    FittingComparator,
    FLICPUProcessor,
    MLEFLIFitter,
)

1.1. Generating a test image

A test image is simulated to compare the ground truth against the estimated values. In this example, a 128 x 512 image is generated with the letters “F”, “L”, “I”, “M”. Each letter is assigned a different intensity value (grayscale bit size) and a different lifetime: 0.7 ± 0.05 ns, 0.8 ± 0.05 ns, 0.9 ± 0.05 ns, and 1.0 ± 0.05 ns, respectively.

h, w = 128, 512
generator = ROIMaskGenerator((h, w), top=10, bottom=10, left=10, right=10)
FLIM_letters = LettersShape(letters=("F", "L", "I", "M"), gap=0.15)

custom_intensities = [0.7, 0.8, 0.9, 1.0]

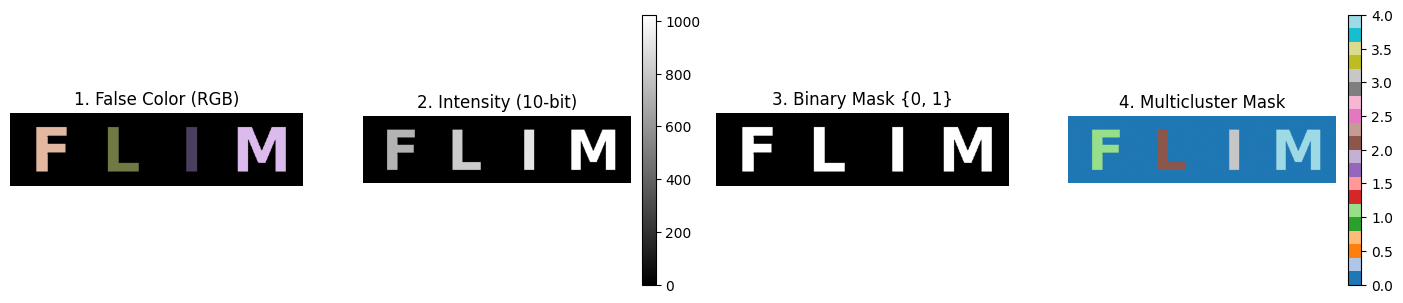

# Preview the generated image
_ = generator.plot_preview(
    FLIM_letters,
    bit_depth=10,
    intensities=custom_intensities,
    show=True,
)

1.2. Loading the IRF

# Path to the local IRF file
IRF_PATH = "<select file/folder path>"

loader = DataOperations(irf_path=IRF_PATH)
irf_data = loader.load_irf()

gate_delay = 12.5 / irf_data.shape[2]
num_gates = irf_data.shape[2]
freq = AnalyticalHelpers(
    laser_period=12.5, gate_delay=gate_delay, num_gate=num_gates
).freq_computation()

INFO:pyfli:Initiating IRF load from: <select file/folder path>

1.3. Simulation configuration

MODEL_TYPE selects the decay model for both the simulation and the fits. Setting mono_fraction to 1.0 forces every simulated pixel to be mono-exponential.

MODEL_TYPE = "mono-exponential"

# Your constant, default configuration
BASE_CONFIG = {
    # Modular Noise
    "jitter": False,  # offset artifact (due to jitter)
    "dcr_on": True,  # Dark Count Rate (thermal background)
    "poisson": False,  # Shot noise — Large detector only
    "qe_on": True,  # Quantum efficiency scaling
    "read_noise_on": False,  # Gaussian read noise — Large detector only
    # Sensor
    "sensor_type": "discrete",  # "continuous" | "discrete"
    "bit": 12,
    "dcr": 0.08,  # Mean dark counts per bin
    "laser_feq": freq[1],  # Laser repetition rate (MHz) → period = 12.5 ns
    "round_on": True,  # Round photon counts to integers — Macro_sim only
    "clip_on": True,  # Clip at bit-depth ceiling — Macro_sim: max_adc_val; TCSPC: max_bin_count
    # Fluorescence Physics (FLI / FRET)
    "tau2": (1, 1),  # τ₂ ~ TruncNormal(mu=1 ns, sigma=0.5 ns)
    "tau2_dist": "beta",  # if dist "beta" or "normal" (default)
    "efficiency": (1, 1),  # FRET efficiency E ~ Beta(2, 5)  → [0.1, 1.0]
    "A1_fraction": (1, 1),  # Amplitude fraction A₁ ~ Beta(2, 5) → [0.05, 0.95]
    "photo_count": (2, 5),  # Peak intensity ~ Beta(2, 5) × max_adc - large detectors
    "mono_fraction": 1.0,  # Fraction of pixels forced mono-exponential (0.0 = all bi-exp)
    "n_cycles": (1_500_000, 2_000_000),  # Accumulation cycles — for photon counter
}

Different ROIs (letter areas, in this case) are assigned different lifetimes.

def get_config(**kwargs):
    """Create a config by overriding defaults with specific test parameters."""
    config = BASE_CONFIG.copy()
    config.update(kwargs)
    return config


ROI0 = {}
ROI1 = get_config(
    tau2_beta_range=(0.05, 0.5),
)
ROI2 = get_config(
    tau2_beta_range=(0.05, 0.7),
)
ROI3 = get_config(
    tau2_beta_range=(0.05, 0.9),
)
ROI4 = get_config(
    tau2_beta_range=(0.05, 1.1),
)

img_intensity = generator.generate_intensity_image(
    FLIM_letters, intensities=custom_intensities
)
img_cluster = generator.generate_cluster_mask(FLIM_letters)
b_bool_mask = generator.generate_binary_mask(FLIM_letters)

simulated_img = FLIModelImageGenerator(
    irf_data=irf_data[120, 40, :],
    intensity_image=img_intensity,
    roi_mask=img_cluster,
    roi_params=[ROI0, ROI1, ROI2, ROI3, ROI4],
    method="PHOTON_COUNTER",
    verbose=True,
    bool_mask=b_bool_mask,
)

gt_data = simulated_img.generate_image()

INFO:pyfli:Generating PHOTON_COUNTER FLI Image [128x512x256]...
Simulating Pixels:   0%|          | 0/65536 [00:00<?, ?px/s]

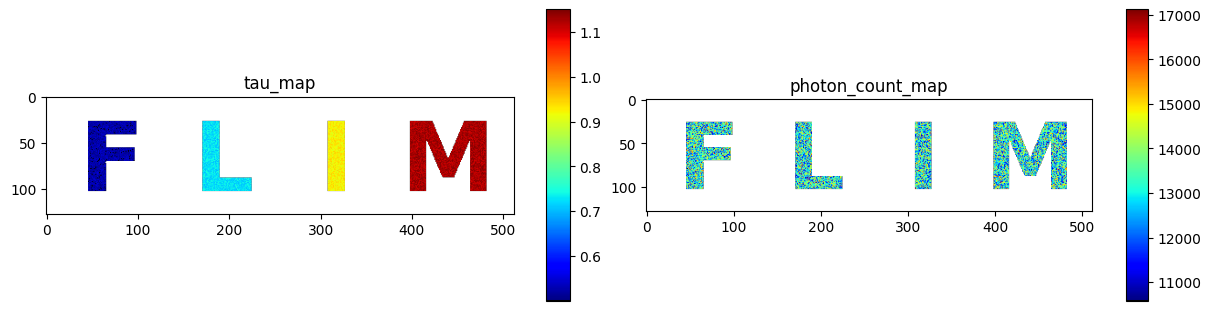

1.3.1. Ground-truth maps

The simulator returns the parameter maps used to generate the data. These are the reference values for the fits below.

gt_maps = gt_data["results"]["maps"]
jet_m = ColorProcessor().lowest_zero("jet")

_ = DataViewer().display_data(
    [gt_maps["tau_map"], gt_maps["photon_count_map"]],
    structure=(1, 2),
    coord=None,
    data_names=["tau_map", "photon_count_map"],
    cmaps=[jet_m] * 2,
    v_ranges=None,
    figsize=(12, 3),
    normalize=False,
    yscale="linear",
)

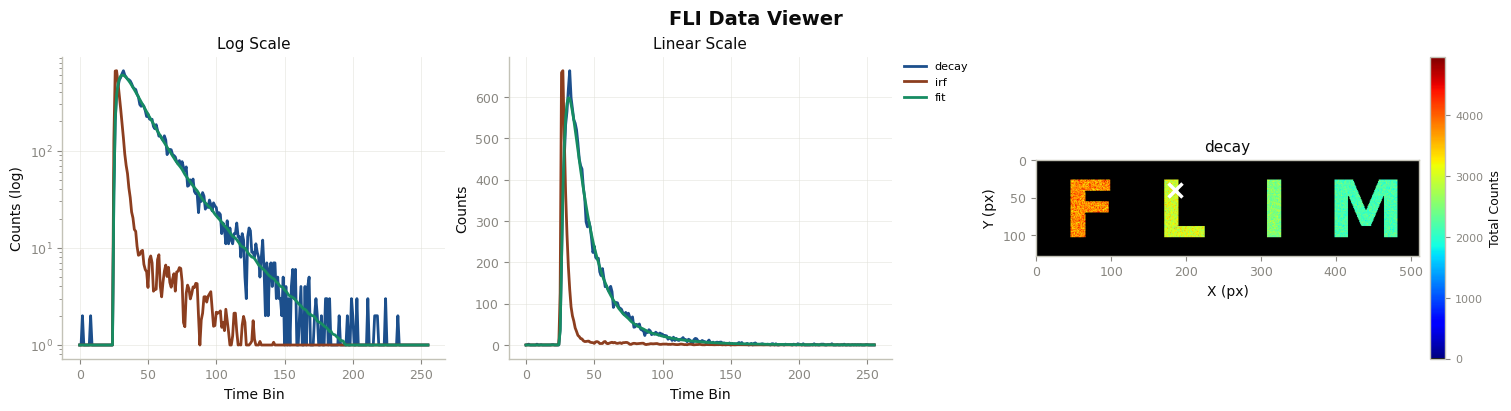

Check the decay, IRF, and fit at a randomly selected pixel.

_decay = gt_data["raw_data"]["decay"]
_irf = gt_data["raw_data"]["irf"]
x, y = random_true_pixel(b_bool_mask)
TRs = gt_data["results"]["TR_maps"]
print(f"the non-zero pixel selected for probing is ({x}, {y})")
irf_norm = Normalization(_irf).norm_scale(_decay)
DataViewer().plot_fli_px(
    data_list=[_decay, irf_norm, TRs["fit_map"], TRs["residual_map"]],
    pixel=(x, y),
    mode=[0, 1, 2],
    mode2=[1],
    names=["decay", "irf", "fit"],
    cmap=jet_m,
)
_ = MessageDisplay().get_pixel_summary(data_maps=gt_maps, px=(x, y))

the non-zero pixel selected for probing is (40, 185)

INFO:pyfli:
  Pixel (40, 185)
  ─────────────────────
  A         15243.1250
  α         —
  τ₁        0.7494
  τ₂        —
  R²        —
  Red.χ²    —
  Raw.χ²    —
  Pearson   —
  v-shift   0.0000
  h-shift   —
  ─────────────────────

1.4. Single-pixel fit: NLSF vs MLE

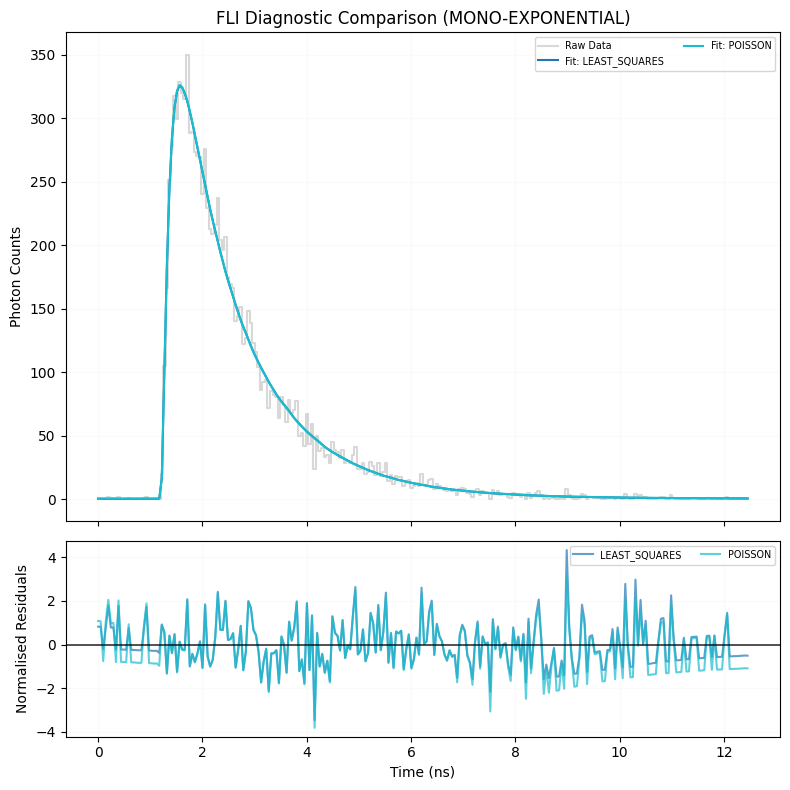

Before fitting the whole image, FittingComparator fits one randomly selected pixel with both estimators and plots the fits side by side:

• "least_squares" uses BaseFLIFitter (NLSF)

• "poisson" uses MLEFLIFitter (Poisson MLE)

p0 (initial guess) and bounds are left as None, so the fitter derives its own initial guess from the data. For a mono-exponential model the parameters are [S, tau, v_shift, h_shift], and both can be passed in that order.

p0 = None
bounds = None

xd, yd = random_true_pixel(b_bool_mask)
pixel_decay = _decay[xd, yd, :]
pixel_irf = _irf[xd, yd, :]

comparator = FittingComparator(freq, BaseFLIFitter, MLEFLIFitter)
comp_results_table, comp_fig = comparator.compare_selected(
    ["least_squares", "poisson"],
    y_data=pixel_decay,
    irf_data=pixel_irf,
    model_type=MODEL_TYPE,
    p0=p0,
    bounds=bounds,
    yscale="linear",
    plot=True,
)

┌──────────────────────────────────────────────────────────────┐
│  FLI Fitting Results  |  MONO-EXPONENTIAL                    │
│  2 methods queued                                            │
└──────────────────────────────────────────────────────────────┘


┌────────────────┬──────┬─────────┬──────────┬─────────┬──────────┬──────────┬─────────┬──────────┐
│ Method         │ Type │       A │        τ │      R² │   Red.χ² │   Raw.χ² │ v-shift │  h-shift │
├────────────────┼──────┼─────────┼──────────┼─────────┼──────────┼──────────┼─────────┼──────────┤
│ LEAST_SQUARES  │ NLSF │ 11060.88 │    1.090 │  0.9924 │   1.2966 │   334.35 │    0.18 │    0.003 │
│ POISSON        │ MLE  │ 11041.33 │    1.085 │  0.9924 │   1.2708 │   332.52 │    0.27 │    0.003 │
└────────────────┴──────┴─────────┴──────────┴─────────┴──────────┴──────────┴─────────┴──────────┘

1.5. Whole-image fitting

Each pixel is fitted independently and in parallel on the CPU:

• FLICPUProcessor(freq, fitter_class) spreads the per-pixel fits over n_jobs worker processes. The fitter class sets the estimator family.

• BinnedFLIFitter(..., bin_radius=0) is the image-level entry point. A bin_radius of 0 fits every pixel as-is, and a larger radius sums each pixel with its neighbours first to raise the photon count.

• max_iter caps the optimizer’s function evaluations per pixel.

On a machine with a CUDA GPU, FLIGPUProcessor can be used in place of FLICPUProcessor to fit all pixels as one batch.

1.5.1. NLSF

MAX_ITER = 1000
N_JOBS = 7

nlsf_fitter = BinnedFLIFitter(FLICPUProcessor(freq, BaseFLIFitter), bin_radius=0)
results_nlsf = nlsf_fitter.fit(
    b_img=_decay,
    b_irf=_irf,
    estimator="least_squares",
    model_type=MODEL_TYPE,
    n_jobs=N_JOBS,
    data_name="simulated_nlsf",
    max_iter=MAX_ITER,
)

INFO:pyfli:Engine: CPU Parallel Processor (via FLICPUProcessor)
Fitting Pixels (least_squares): 100%|██████████| 10241/10241 [00:32<00:00, 317.52px/s]

1.5.2. MLE

The same pipeline is run with MLEFLIFitter and the "poisson" estimator. MLE takes longer per pixel than NLSF.

mle_fitter = BinnedFLIFitter(FLICPUProcessor(freq, MLEFLIFitter), bin_radius=0)
results_mle = mle_fitter.fit(
    b_img=_decay,
    b_irf=_irf,
    estimator="poisson",
    model_type=MODEL_TYPE,
    n_jobs=N_JOBS,
    data_name="simulated_mle",
    max_iter=MAX_ITER,
)

INFO:pyfli:Engine: CPU Parallel Processor (via FLICPUProcessor)
Fitting Pixels (poisson): 100%|██████████| 10241/10241 [00:59<00:00, 171.39px/s]

1.6. Comparing the results

Every fit result has the same layout: results["results"]["maps"] holds the parameter maps (tau_map, R2_map, reduced_chi2_map, …), and results["results"]["TR_maps"] holds the per-pixel fitted curves (fit_map) and residuals (residual_map).

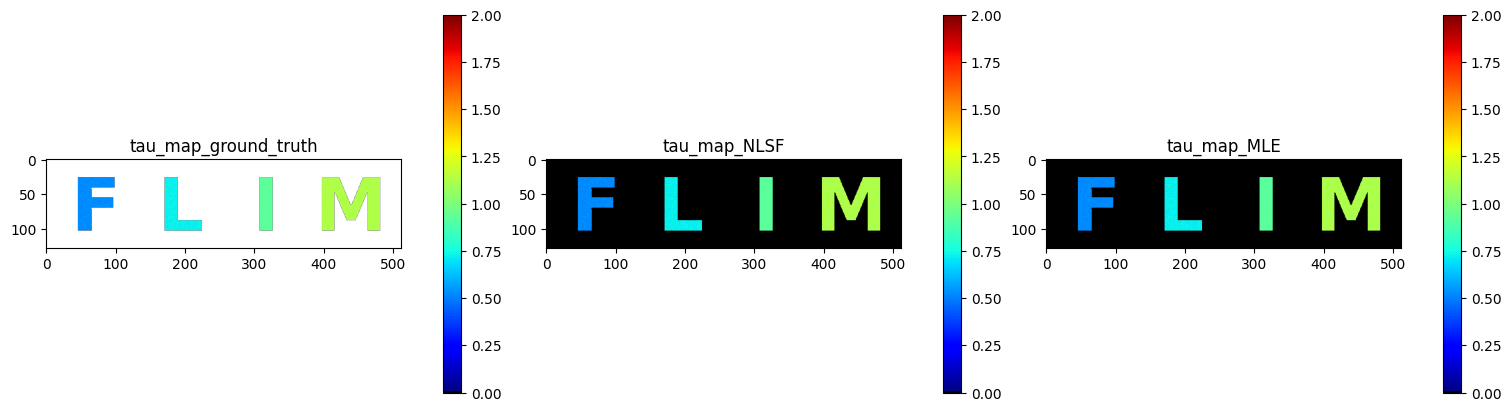

1.6.1. Lifetime maps

experiments = {"NLSF": results_nlsf, "MLE": results_mle}
all_datasets = [res["results"]["maps"] for res in experiments.values()]
all_fitset = [res["results"]["TR_maps"] for res in experiments.values()]

_ = DataViewer().display_data(
    [gt_maps["tau_map"]] + [maps["tau_map"] for maps in all_datasets],
    structure=(1, 3),
    coord=None,
    data_names=["tau_map_ground_truth"] + [f"tau_map_{name}" for name in experiments],
    cmaps=[jet_m] * 3,
    v_ranges=[(0, 2)] * 3,
    figsize=None,
    normalize=False,
    yscale="linear",
)

1.6.2. Lifetime distributions

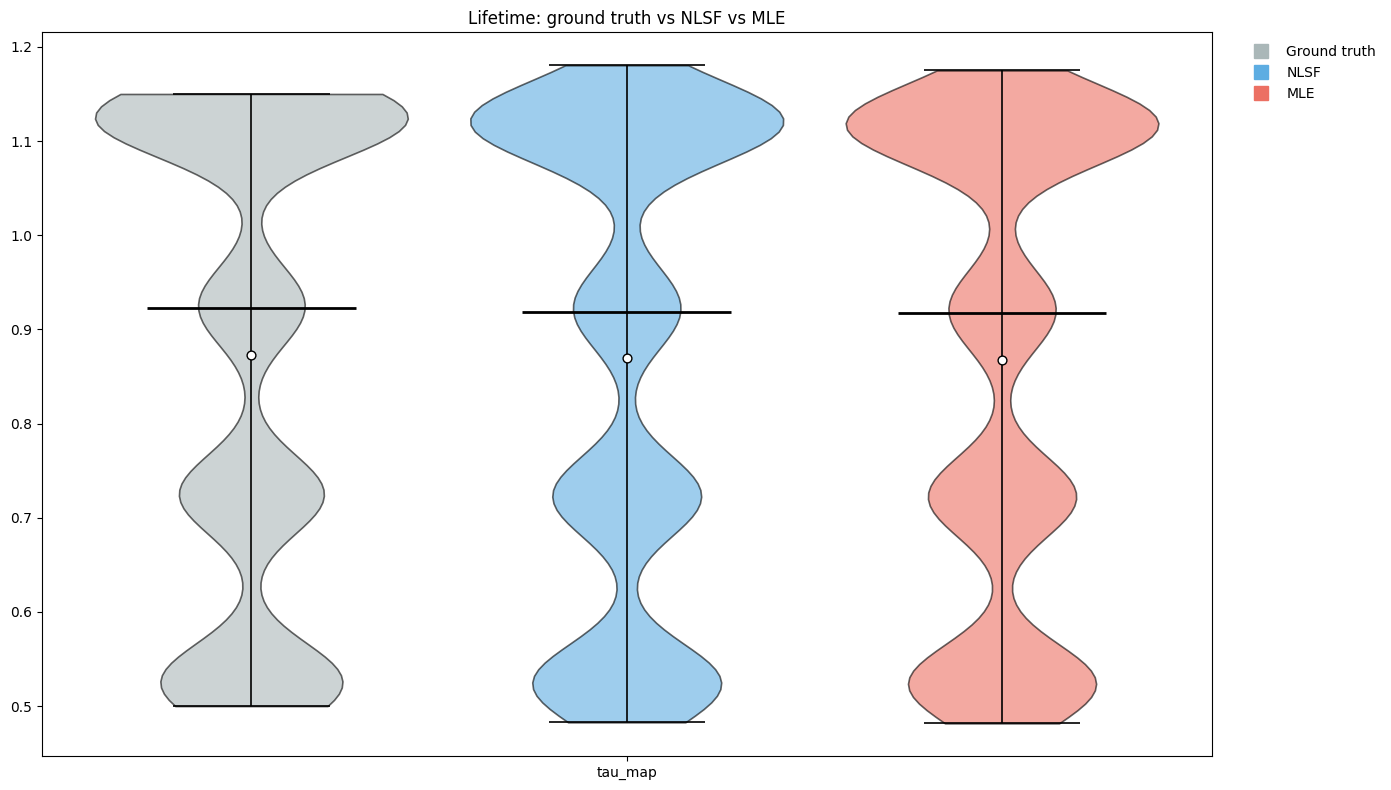

Plotter compares the lifetime values of the letter pixels across the sources. The operations dict is applied to every source: it keeps only pixels inside the mask, drops failed fits (NaN or zero) and discards values outside the threshold range. A list of dicts, one per source, can be passed instead to filter each source differently.

names = ["Ground truth"] + list(experiments)
plotter_ops = {
    "mask": b_bool_mask.ravel(),
    "remove_nan": True,
    "remove_zero": True,
    "threshold": (0, 7),
}

painter = Plotter(
    gt_maps,
    *all_datasets,
    values=["tau_map"],
    style_config=["#AAB7B8", "#5DADE2", "#EC7063"],
    source_names=names,
    operations=plotter_ops,
)

fig = painter.make_plot(
    title="Lifetime: ground truth vs NLSF vs MLE",
    graph_type="violin",
    point_type="strip",
    show_mean=True,
    show_median=True,
    show_significance=True,
    test_type="none",
    correction=False,
)

graph_type can also be "box", "swarm", "overlay", "raincloud" or "kde". Setting test_type to "paired" or "welch" adds significance tests between the sources.

1.6.3. Fits at a single pixel

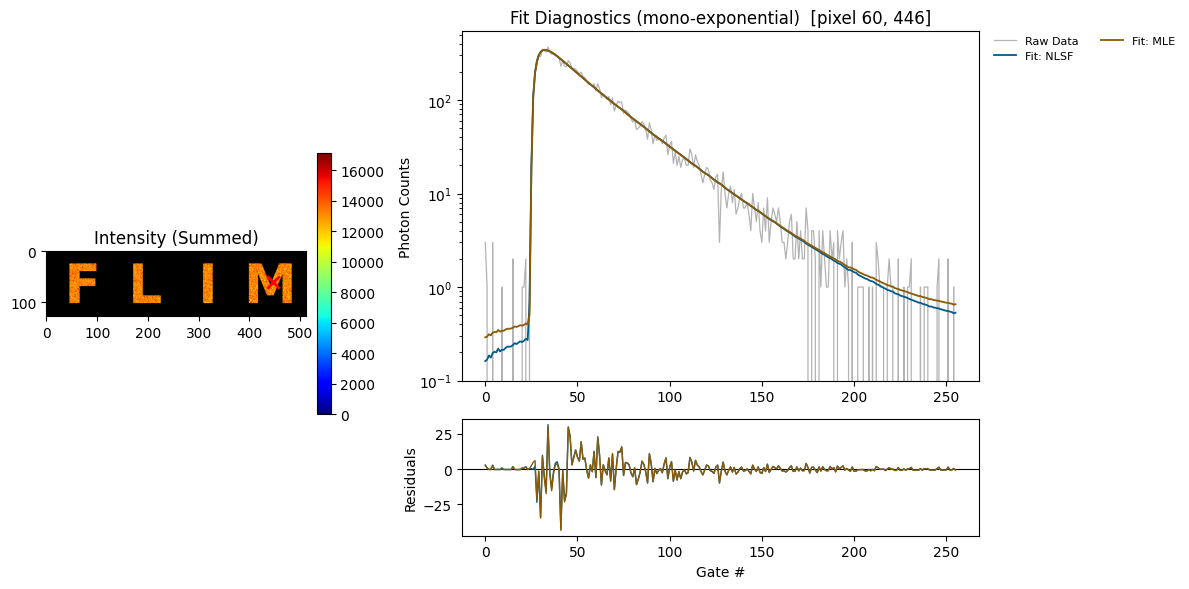

plot_pixel_diagnostic overlays the NLSF and MLE fitted curves on the measured decay at one pixel, with the residuals below.

x, y = random_true_pixel(b_bool_mask)
_ = plot_pixel_diagnostic(
    _decay,
    all_fitset,
    list(experiments),
    mask=b_bool_mask,
    pixel=(x, y),
    t=None,
    yscale="log",
    raw_style="line",
    model_type=MODEL_TYPE,
)

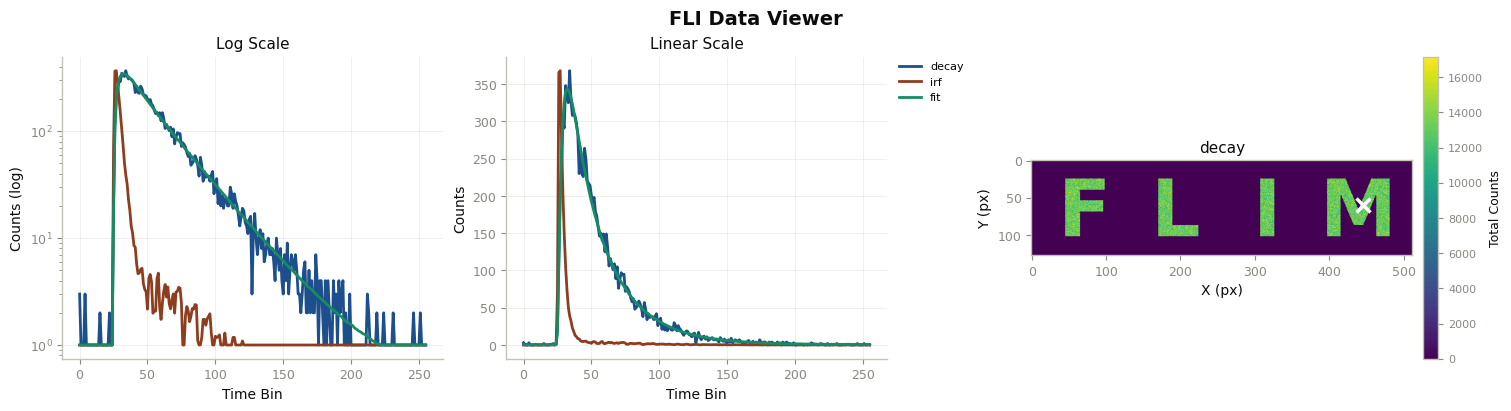

The same pixel is shown for each estimator, along with the fitted parameters and goodness-of-fit metrics (R², reduced χ²).

print(f"the non-zero pixel selected for probing is ({x}, {y})")
irf_norm = Normalization(_irf).norm_scale(_decay)
for name, maps, TRs in zip(experiments, all_datasets, all_fitset):
    print(f"--- {name} ---")
    DataViewer().plot_fli_px(
        data_list=[_decay, irf_norm, TRs["fit_map"], TRs["residual_map"]],
        pixel=(x, y),
        mode=[0, 1, 2],
        mode2=[0],
        names=["decay", "irf", "fit"],
    )
    _ = MessageDisplay().get_pixel_summary(data_maps=maps, px=(x, y))

the non-zero pixel selected for probing is (60, 446)
--- NLSF ---

INFO:pyfli:
  Pixel (60, 446)
  ─────────────────────
  A         11950.3438
  α         —
  τ₁        1.1264
  τ₂        —
  R²        0.9934
  Red.χ²    1.0300
  Raw.χ²    265.1899
  Pearson   0.8358
  v-shift   0.1664
  h-shift   -0.0009
  ─────────────────────

--- MLE ---

INFO:pyfli:
  Pixel (60, 446)
  ─────────────────────
  A         11922.6924
  α         —
  τ₁        1.1177
  τ₂        —
  R²        0.9933
  Red.χ²    0.9976
  Raw.χ²    261.7461
  Pearson   0.8310
  v-shift   0.2945
  h-shift   0.0022
  ─────────────────────
